Weight
6KG
TORkerb
The new and improved range of recycled composite kerb drainage solutions
Introducing the TORkerb.
A better way of working for a safer more sustainable environment.
Difference
90%
Loading Weight
40 Tonnes
Loading Category
D400
Speed Of Installation Difference
50%
Warranted?
WRC Approved
Warranted?
WRC Approved
Warranted?
WRC Approved
Benefits of using TORkerb
- 100% Recyclable
- 20%+ Recyclable Material
- 90% Lighter
- D400 Tested
- WRC Approved
- 40 Tonnes+ Load Weight
- Full Stock
- Full Support
- Sustainable
- Innovative
TORkerb 60000
TORkerb 6000
The 60000 SP range has a full batter (45 Degree) Splay Profile used primarily on fast moving carriageways, verges and rural infrastructure where this is no rear footway. The profile is desined to allow accidental overrun but encourage vehicles back towards the carriageway.
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Useable Flow Area mm2 | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|---|
| Type 60000 | Description TORkerb 305 Full Batter / Splay Standard Unit | Weight / Kg 7 | Length / mm 500 | Width / mm 215 | Depth / mm 305 | Useable Flow Area mm2 22,182 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |

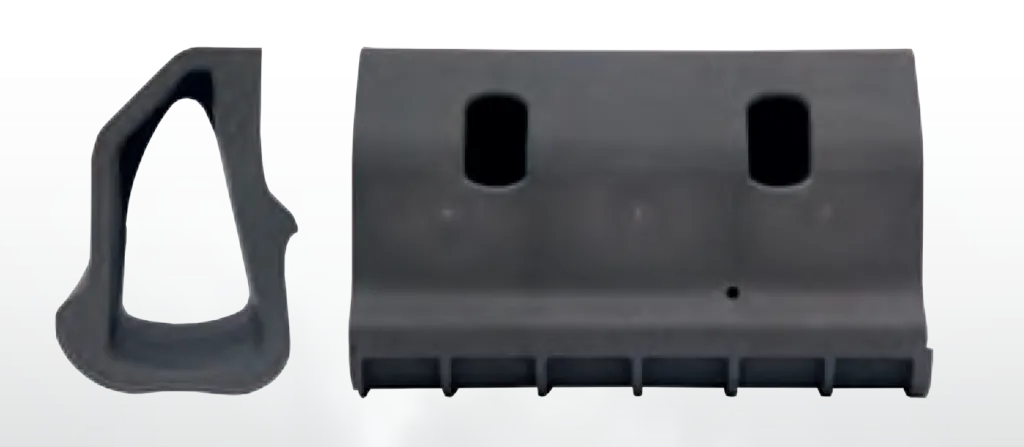

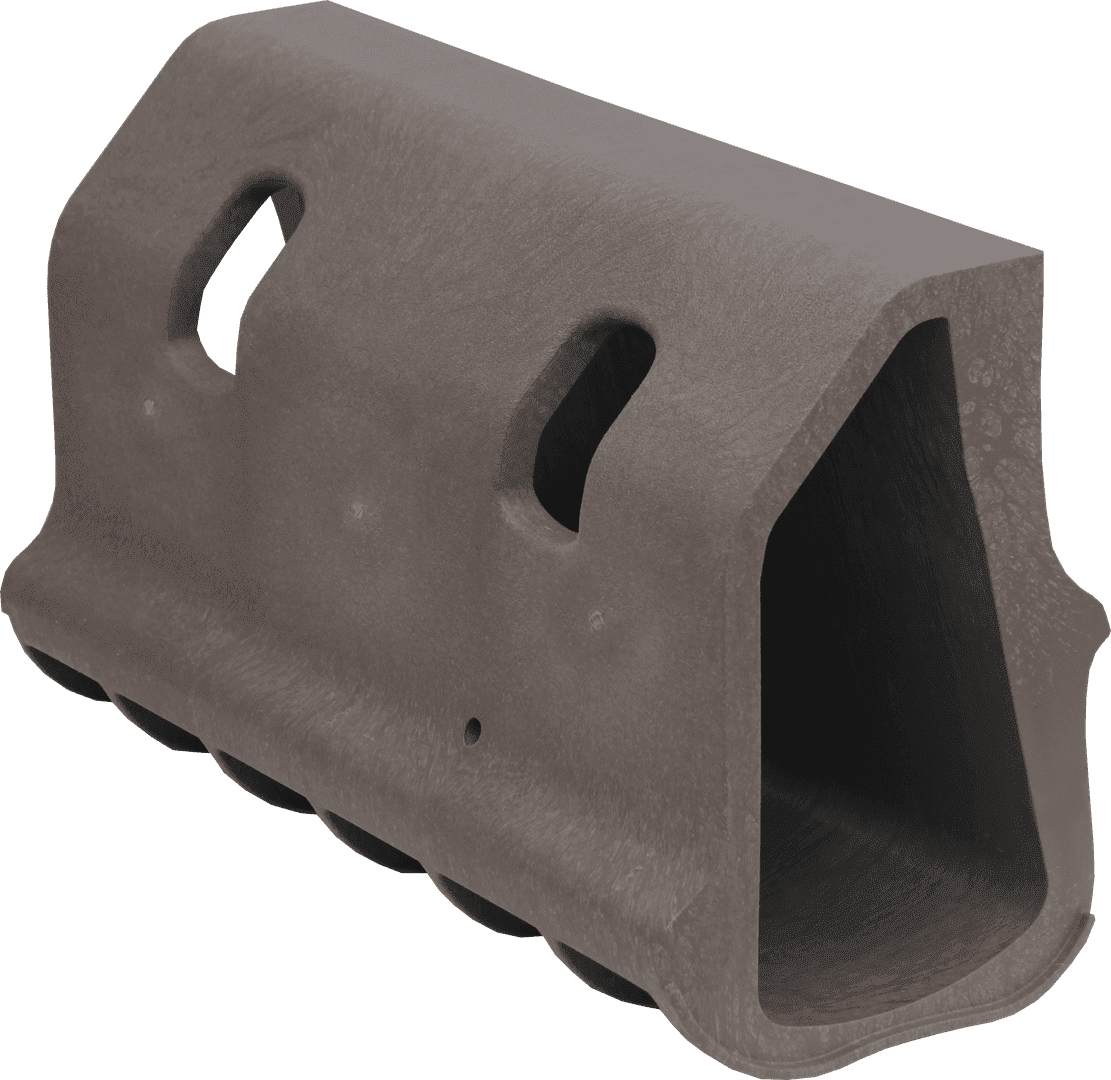

TORkerb 305 Splay Standard Unit
The recycled & recyclable lightweight standard units are manufactured from a hydraulically efficient material and have a large useable volume. This means large areas can be drained quickly and safely, protecting surfaces by taking run-off at multiple points across the whole length of the kerb-line
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|
| Type 60050 | Description TORkerb 305 Full Batter / Splay Gully Outfall | Weight / Kg 68 | Length / mm 500 | Width / mm 457 | Depth / mm 353 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |

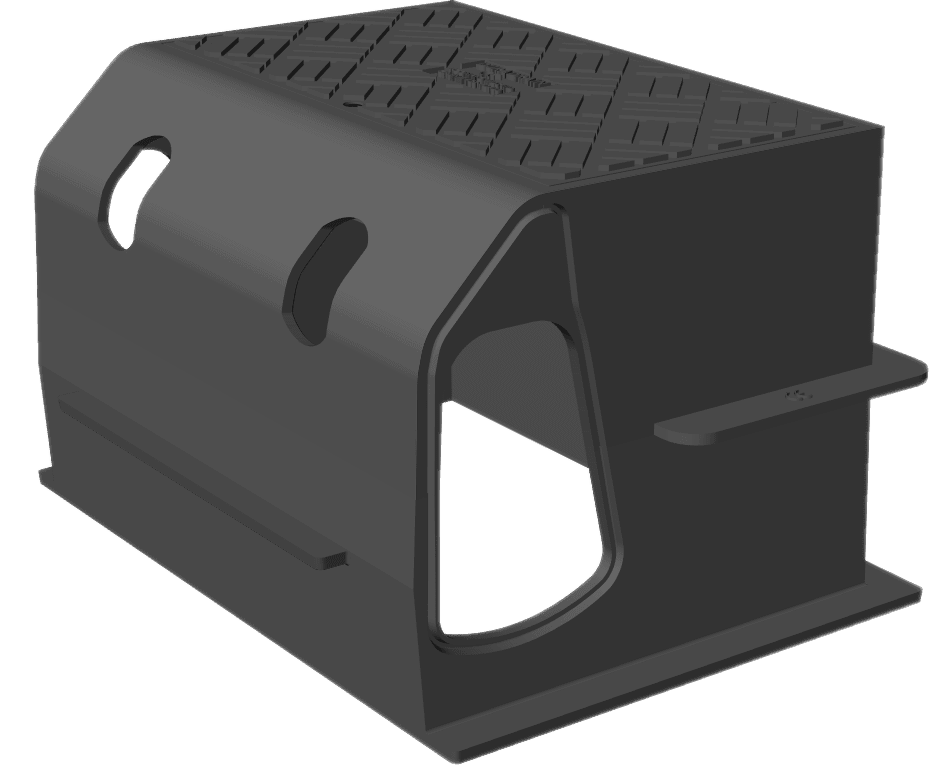

TORkerb Full Batter / Splay Gull Outfall
The TORkerb full batter ductile iron top and base units provide a high quality, heavy duty outlet point.
The units allow for single or dual inflows and have a large access area for maintenance.
| Type | Description | Weight / Kg | Width / mm | Depth / mm |
|---|---|---|---|---|
| Type 70090 | Description TORkerb 305 Universal End Cap / Outlet | Weight / Kg 0.2 | Width / mm 215 | Depth / mm 305 |
TORkerb 305 Universal End Cap / Outlet
TORkerb universal end caps are cut to profile on site and fitted to access / outlets and standard units. Simply apply sealant up to the window / entry height and fix. Caps can be cut to allow for below ground pipe connections.
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Useable Flow Area mm2 | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|---|
| Type 60072 | Description TORkerb 305 Splay Rodding Access / Outlet Unit | Weight / Kg 16 | Length / mm 250 | Width / mm 218 | Depth / mm 360 | Useable Flow Area mm2 22,182 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |
TORkerb 305 Splay Rodding Access / Outlet Unit
TORkerb solid ductile iron access points can be installed at the head of each run and at regular intervals subject to site conditions. Units are supplied with a blank plug which can be removed, sealed and refitted. Alternatively they can be used as a robust shallow or intermediate outlet point (EN1404-162 Dia Rear Pipe Outlet).
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Radius / m | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|---|
| Type 60100 | Description TORkerb SP External Radius Unit 7/5 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 7/5 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |
| Type 60104 | Description TORkerb SP External Radius Unit 12/8 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 7/5 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |
| Type 60110 | Description TORKerb SP External Radius Unit 27/13 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 27/13 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |
| Type 60200 | Description TORKerb SP Internal Radius Unit 7/5 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 7/5 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |
| Type 60204 | Description TORKerb SP Internal Radius Unit 12/8 | Weight / Kg 7 | Length / mm 480 | Width / mm 305 | Depth / mm 215 | Radius / m 12/8 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |
| Type 60210 | Description TORKerb SP Internal Radius Unit 27/13 | Weight / Kg 7 | Length / mm 480 | Width / mm 305 | Depth / mm 215 | Radius / m 27/13 | Kerb Upstand / mm 75/100 | Load Classification EN1433 : 2002-D400 |
TORkerb SP External / Internal Radius Unit
Standard Units can be supplied facetted to suit both external and internal radii.
TORkerb 70000
TORkerb 7000
The 70000 HB range has a half battered Profile used primarily on roads with a rear footway or at surface boundaries to hard standings and car parking areas.
The profile is designed to deter overrun and deflect traffic back onto the carriageway.
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Useable Flow Area mm2 | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|---|
| Type 70000 | Description TORkerb 305 Half Batter Standard Unit | Weight / Kg 8.4 | Length / mm 500 | Width / mm 215 | Depth / mm 305 | Useable Flow Area mm2 21,197 | Kerb Upstand / mm 100/125 | Load Classification EN1433 : 2002-D400 |

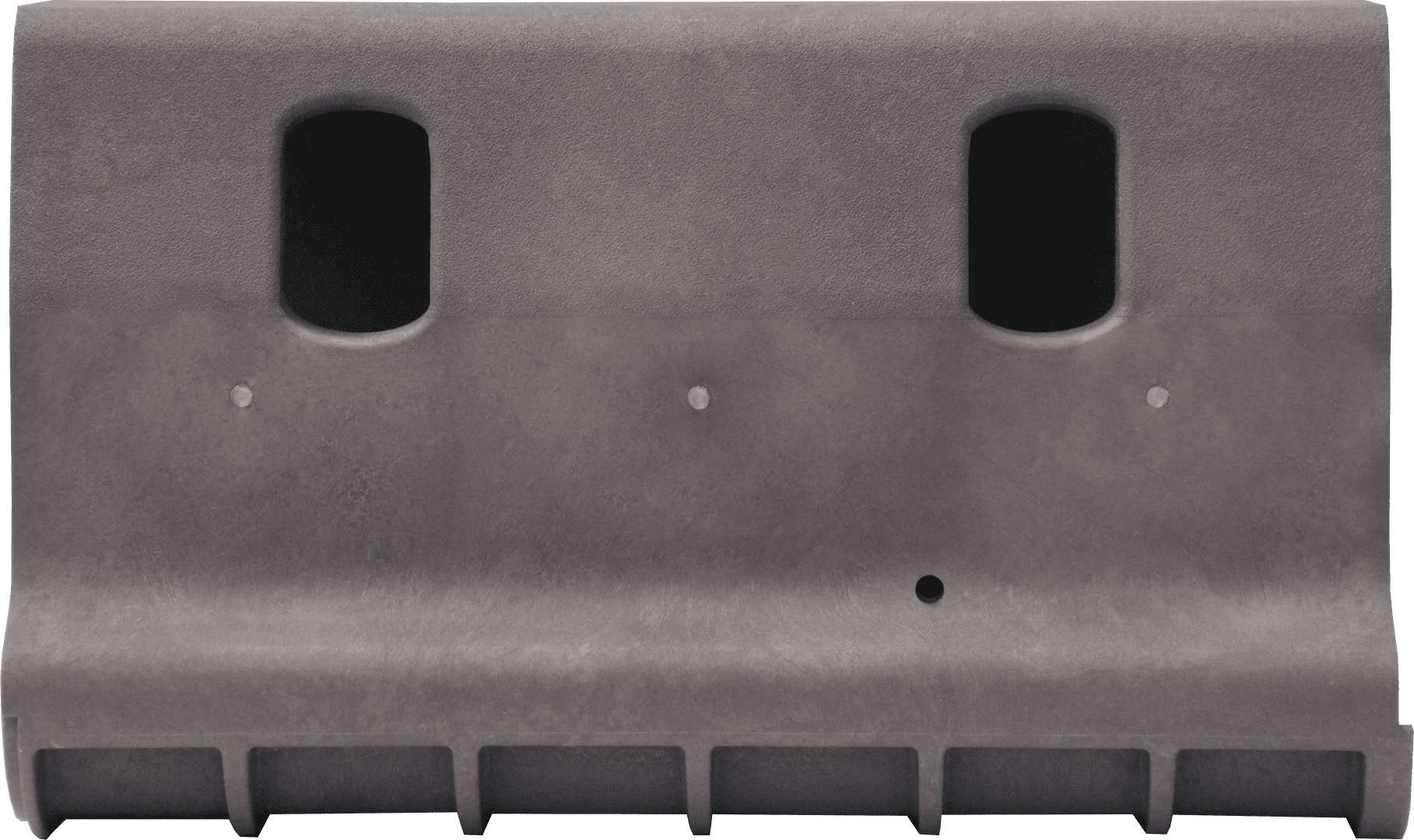

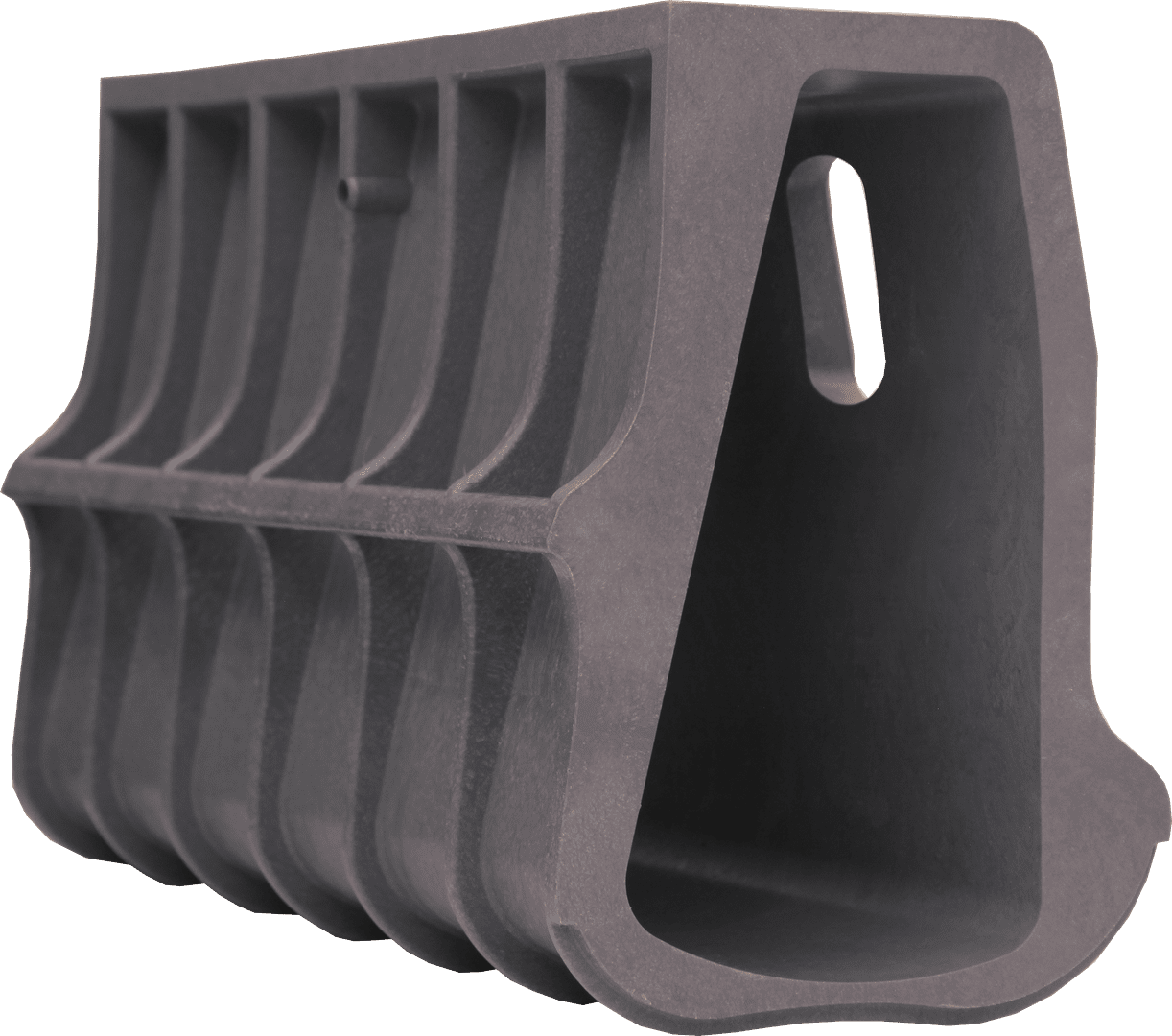

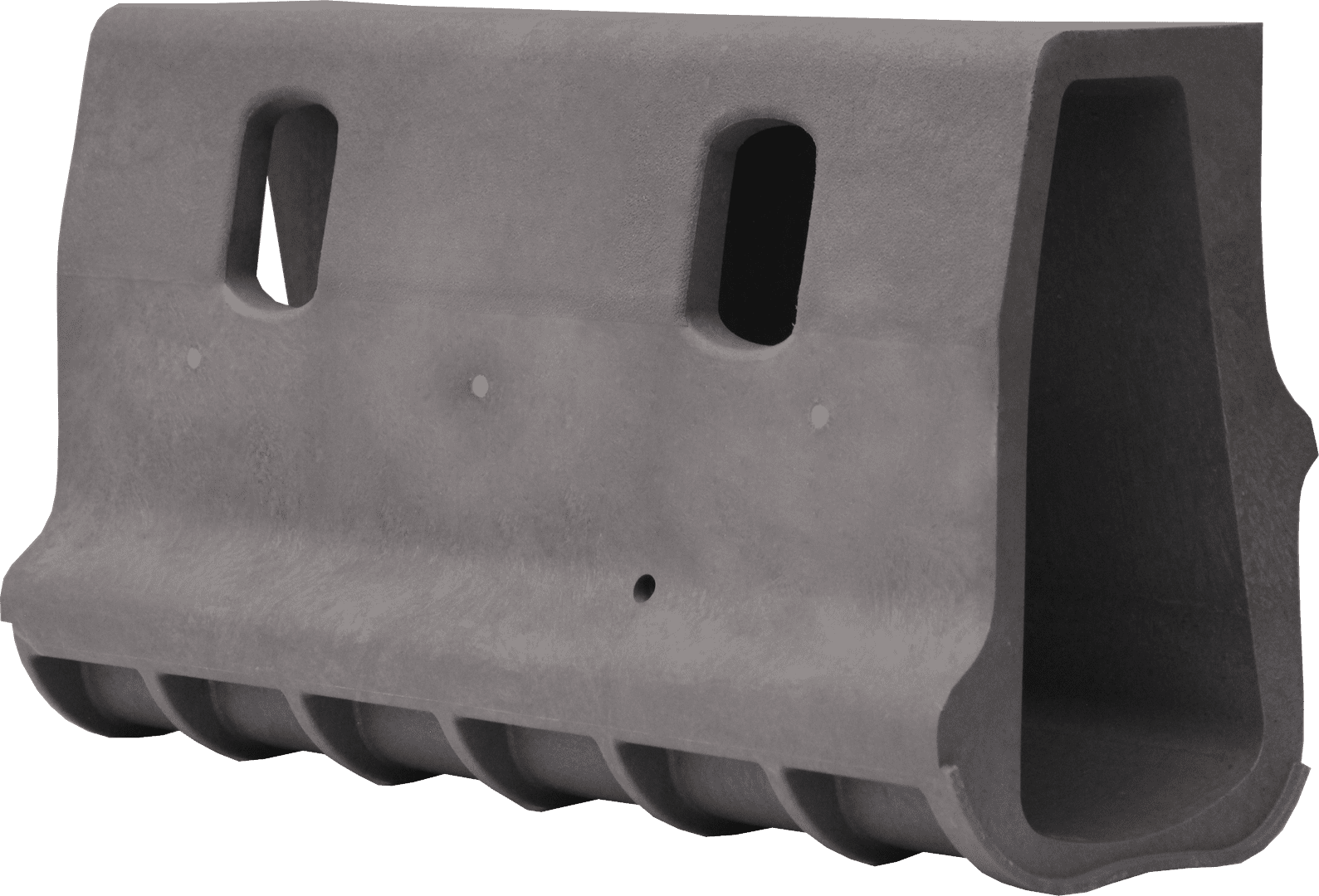

TORkerb 305 Half Batter Standard Unit
The recycled & recyclable lightweight standard units are manufactured from a hydraulically efficient material and have a large useable volume.
This means large areas can be drained quickly and safely, protecting surfaces by taking run-off at multiple points across the whole length of the kerb-line.
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|
| Type 70050 | Description TORkerb 305 Half Batter Gully Outfall | Weight / Kg 68 | Length / mm 500 | Width / mm 215 | Depth / mm 353 | Kerb Upstand / mm 100/125 | Load Classification EN1433 : 2002-D400 |

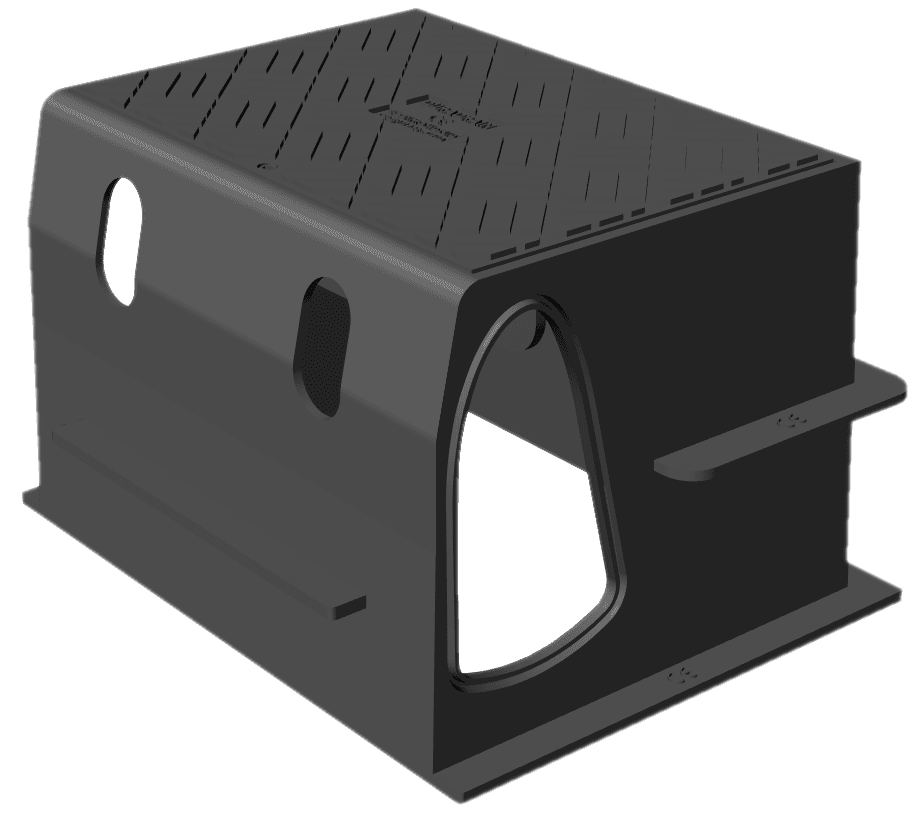

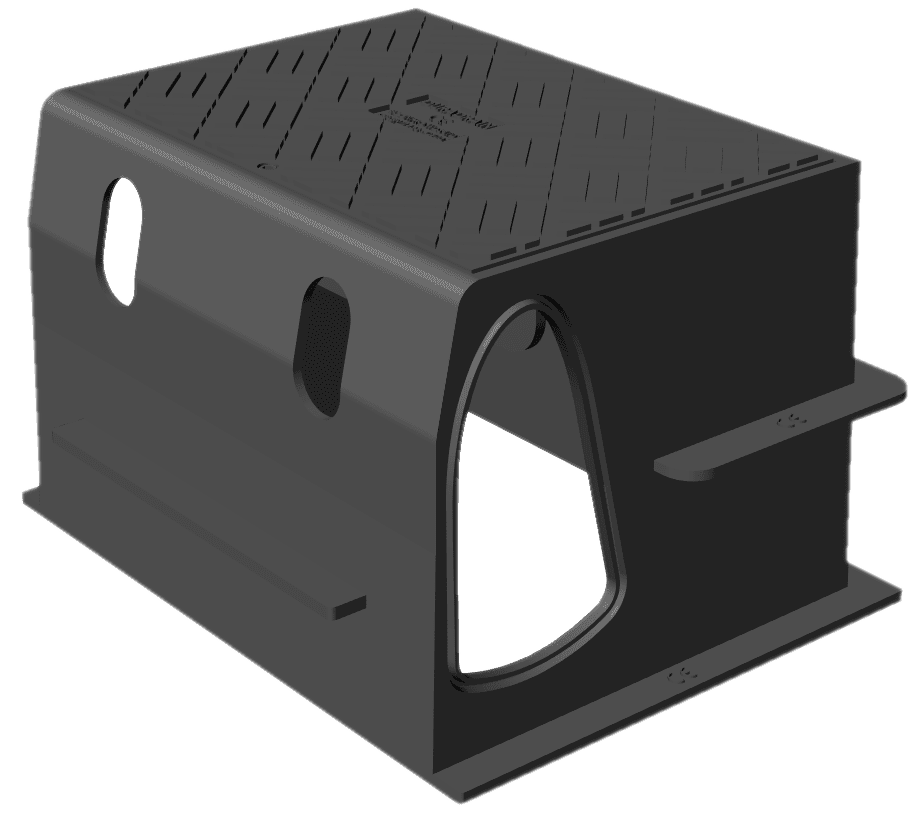

TORkerb 305 Half Batter Gully Outfall
The TORkerb Half Batter ductile iron top and base units provide a high quality, heavy duty outlet point.
The units allow for single or dual inflows and have a large access area for maintenance.
| Type | Description | Weight / Kg | Width / mm | Depth / mm |
|---|---|---|---|---|
| Type 70090 | Description TORkerb 305 Universal End Cap / Outlet | Weight / Kg 0.2 | Width / mm 215 | Depth / mm 305 |

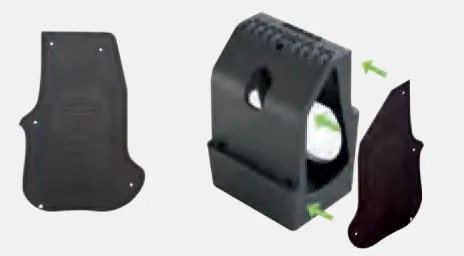

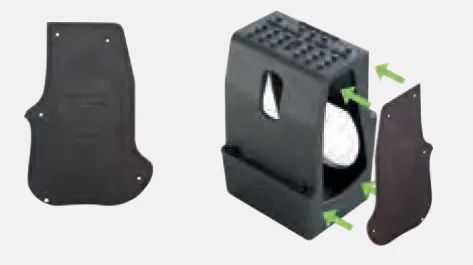

TORkerb 305 HB End Cap / Outlet
TORkerb Universal end caps can be fitted to access/ outlets and standard units.
Simply apply sealant up to the window/entry height and fix.
Caps can be cut to allow for below ground pipe connections.
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Useable Flow Area mm2 | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|---|
| Type 70072 | Description TORkerb 305 HB Rodding Access / Outlet Unit | Weight / Kg 14 | Length / mm 250 | Width / mm 218 | Depth / mm 360 | Useable Flow Area mm2 21,197 | Kerb Upstand / mm 100/125 | Load Classification EN1433 : 2002-D400 |

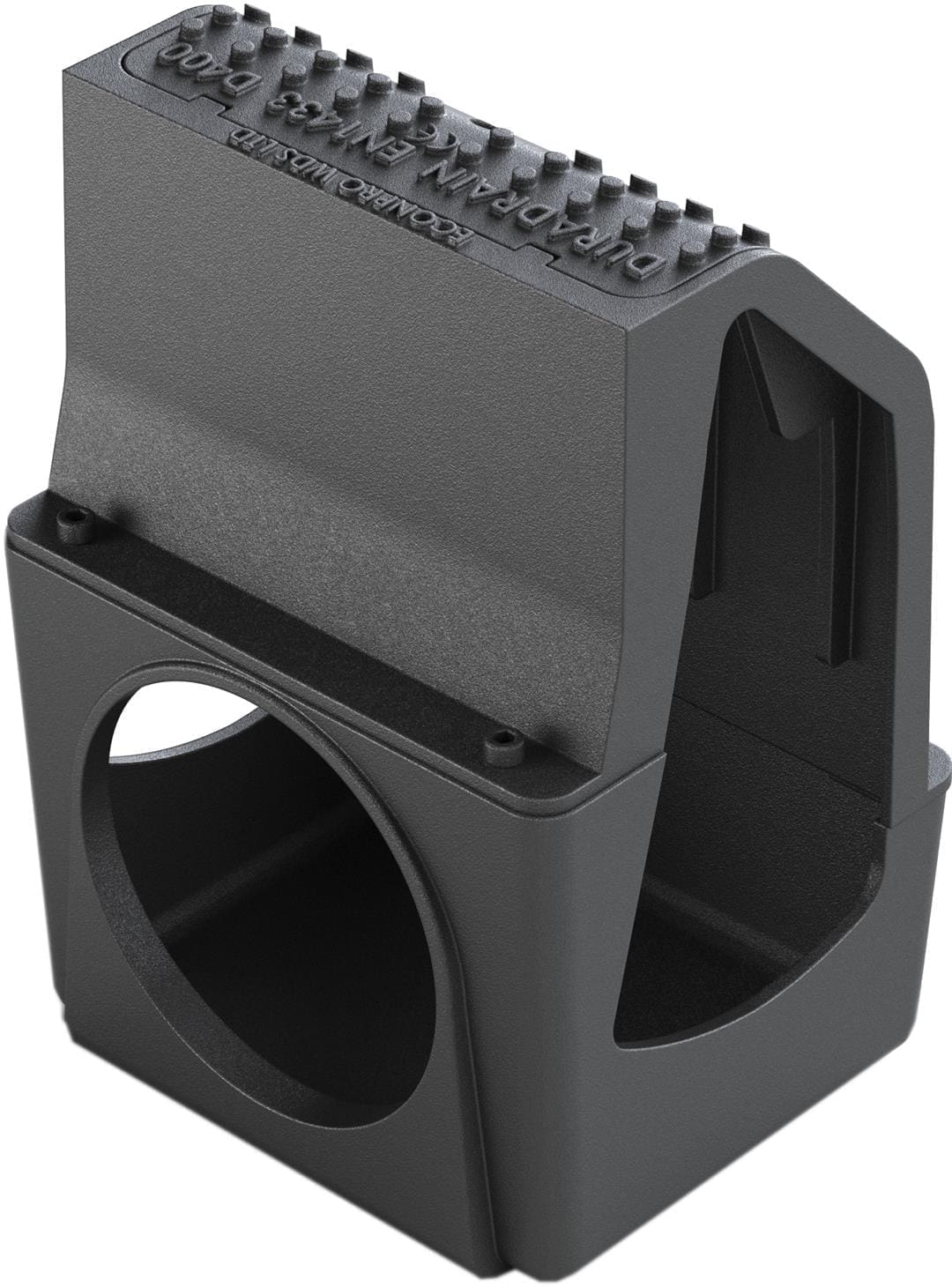

TORkerb 305 Rodding Access / Outlet Unit
TORkerb solid ductile iron access points can be installed at the head of each run and at regular intervals subject to site conditions.
Units are supplied with a blank plug which can be removed, sealed and refitted.
Alternatively they can be used as a robust shallow or intermediate outlet point (EN1401-162 Dia Rear Pipe Outlet).
Drop Kerbs & Centre Stones
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Load Classification |
|---|---|---|---|---|---|---|
| Type 70010 | Description TORkerb Left Hand Drop Kerb L305 | Weight / Kg 7 | Length / mm 500 | Width / mm 215 | Depth / mm 305/255 | Load Classification EN1433 : 2002-D400 |
| Type 70015 | Description TORkerb Left Hand Drop Kerb L255 | Weight / Kg 5 | Length / mm 500 | Width / mm 215 | Depth / mm 255/205 | Load Classification EN1433 : 2002-D400 |
| Type 70020 | Description TORKerb Right Hand Drop Kerb R305 | Weight / Kg 7 | Length / mm 500 | Width / mm 215 | Depth / mm 305/255 | Load Classification EN1433 : 2002-D400 |
| Type 70025 | Description TORKerb Right Hand Drop Kerb R255 | Weight / Kg 5 | Length / mm 500 | Width / mm 215 | Depth / mm 255/205 | Load Classification EN1433 : 2002-D400 |
| Type 70035 | Description TORKerb Drainable Centre Stone 205 | Weight / Kg 4.8 | Length / mm 500 | Width / mm 215 | Depth / mm 205 | Load Classification EN1433 : 2002-D400 |
We offer standard drop configurations from 125mm/ 100mm full kerb height.
Road surfacing can be rolled to accommodate a 0-6mm or 25mm upstand through the crossing.
Duradrain one piece centre stones are supplied with vertical 8mm pedestrian friendly inlets to maintain drainage through each drop section.
Radius Units & Corners
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Radius / m | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|---|
| Type 70100 | Description TORkerb HB External Radius Unit 7/5 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 7/5 | Kerb Upstand / mm 75/125 | Load Classification EN1433 : 2002-D400 |
| Type 70104 | Description TORkerb HB External Radius Unit 12/8 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 12/8 | Kerb Upstand / mm 75/125 | Load Classification EN1433 : 2002-D400 |
| Type 70110 | Description TORKerb HB External Radius Unit 27/13 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 27/13 | Kerb Upstand / mm 75/125 | Load Classification EN1433 : 2002-D400 |
| Type 70200 | Description TORKerb HB Internal Radius Unit 7/5 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 7/5 | Kerb Upstand / mm 75/125 | Load Classification EN1433 : 2002-D400 |
| Type 70201 | Description TORKerb SP Internal Radius Unit 12/8 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 12/8 | Kerb Upstand / mm 75/125 | Load Classification EN1433 : 2002-D400 |
| Type 70210 | Description TORKerb HB Internal Radius Unit 27/13 | Weight / Kg 7 | Length / mm 480 | Width / mm 215 | Depth / mm 305 | Radius / m 27/13 | Kerb Upstand / mm 75/125 | Load Classification EN1433 : 2002-D400 |

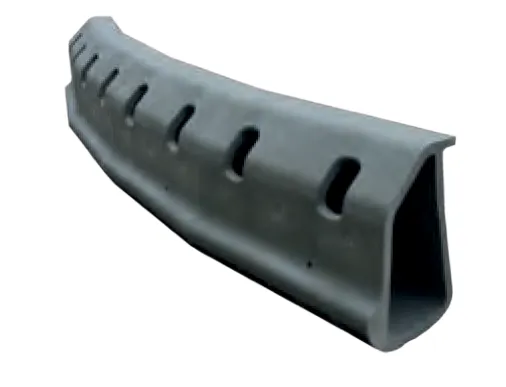

TORkerb HB Internal / External Radius Unit
Standard units can be supplied facetted to suit both external and internal radii.
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|
| Type 70005 | Description TORkerb HB External HB 90 Degree Corner | Weight / Kg 7 | Length / mm 300 | Width / mm 300 | Depth / mm 305 | Kerb Upstand / mm 75/125 | Load Classification EN1433 : 2002-D400 |
| Type 70006 | Description TORkerb HB Internal HB 90 Degree Corner | Weight / Kg 7 | Length / mm 300 | Width / mm 300 | Depth / mm 305 | Kerb Upstand / mm 75/125 | Load Classification EN1433 : 2002-D400 |
| Type 70031 | Description TORKerb HB External CS 90 Degree Corner | Weight / Kg 7 | Length / mm 300 | Width / mm 300 | Depth / mm 205 | Kerb Upstand / mm 0/25 | Load Classification EN1433 : 2002-D400 |
| Type 70032 | Description TORKerb HB Internal CS 90 Degree Corner | Weight / Kg 7 | Length / mm 300 | Width / mm 300 | Depth / mm 205 | Kerb Upstand / mm 0/25 | Load Classification EN1433 : 2002-D400 |

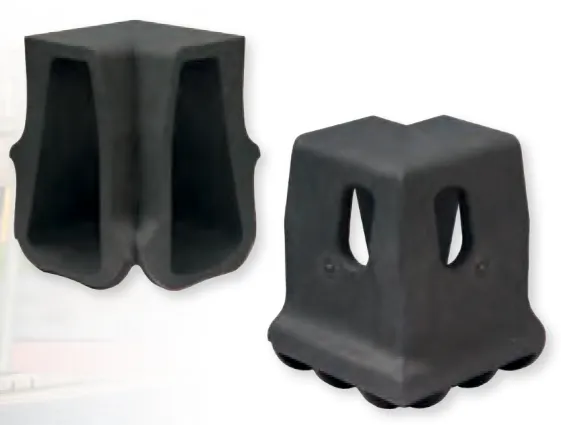

TORkerb Internal /90 degree Corner
Standard full height and dropped units can be supplied cut and fixed to provide precise external or internal angles.
- Reducing Carbon
- Reducing Waste
- Reducing Risk
- Environmental Impacts
CKD (Combined Kerb & Drainage) is already an accepted and adoptable method of highway drainage.
Our shallow profile drainable units give designers further options to allow for shallower kerb upstands, ideal for cycleways with designated lane separation.
TORkerb SHALLOW PROFILE
Modern infrastructure design for our towns and cities is changing to meet the new net carbon zero targets set by governments to reduce. Designers are creating roads and pavements to encourage increased use for pedestrians, cyclists, wheelchair users and public transport.
| Type | Weight / Kg | Length / mm | Width / mm | Depth / mm | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|
| Type 70035 | Weight / Kg 4.8 | Length / mm 500 | Width / mm 215 | Depth / mm 205 | Kerb Upstand / mm 0/25 | Load Classification EN1433 : 2002-D400 |
| Type 70038 | Weight / Kg 5.5 | Length / mm 500 | Width / mm 215 | Depth / mm 205 | Kerb Upstand / mm 35/60 | Load Classification EN1433 : 2002-D400 |

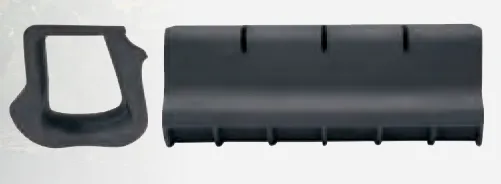

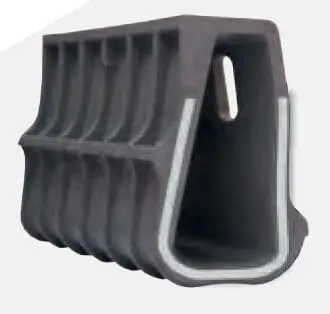

Shallow Profile Standard Units
The recycled & recyclable lightweight drainable units are manufactured from a hydraulically efficient material and have a large useable volume.
This means large areas can be drained quickly and safely, protecting surfaces by taking runoff at multiple points across the whole length of the kerb-line.
| Type | Description | Weight / Kg | Length / mm | Width / mm | Depth / mm | Kerb Upstand / mm | Load Classification |
|---|---|---|---|---|---|---|---|
| Type 70055 | Description TORkerb B/N Gully Outfall | Weight / Kg 58 | Length / mm 500 | Width / mm 457 | Depth / mm 253 | Kerb Upstand / mm 0/60 | Load Classification EN1433 : 2002-D400 |
| Type 70058 | Description TORkerb B/N Access only c/w Sealed Base Plate | Weight / Kg 60 | Length / mm 500 | Width / mm 457 | Depth / mm 253 | Kerb Upstand / mm 0/60 | Load Classification EN1433 : 2002-D400 |

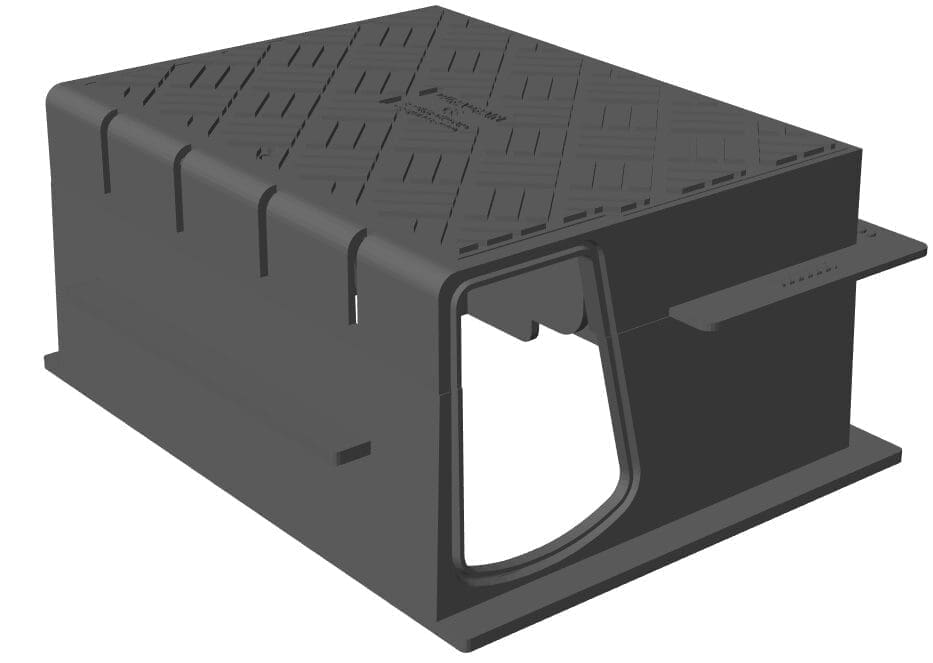

TORkerb BN Gully Outfall
The TORkerb Bullnose ductile iron top and base units provide a high quality, heavy duty outlet point.
The units allow for single or dual inflows and have a large access area for maintenance.
This unit can be supplied with a sealed baseplate when used as access only.
Shallow Profile Transition Unit
We can also supply pre-fabricated handed drop / transitions to accommodate variable changes in height common with low profile designs where crossing points are shallow.
